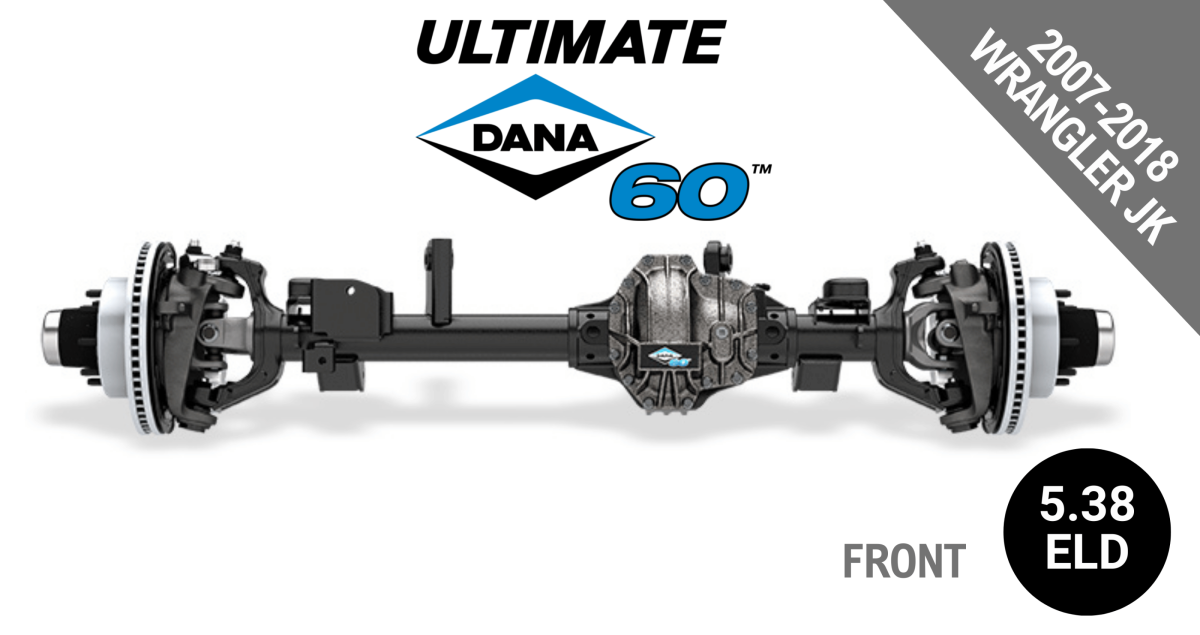

Ultimate Dana 60™ Crate Axle, Fits 2007-2018 Jeep Wrangler JK - Front Axle - 5.38 Gear Ratio, Eaton ELocker® - 10005777

Drive Axle Assembly

Ultimate Dana 60 Crate Axle - Jeep Wrangler JK - Front 5.38 ELD
Availability: Ready to Ship
Pricing: $9,749.99


Engineered to be a direct-fit, bolt-in solution for the Jeep Wrangler JK, Ultimate Dana 60™ axles are built for superior strength inside and out.

The full-float design of the Ultimate Dana 60™ axle means that the vehicle weight is carried by the housing instead of the shaft. So, you can enjoy a greater load-carrying ability wherever your Jeep takes you. The Ultimate Dana 60™ axle features Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts to help meet the rigors of off-road, providing maximum strength and durability for vehicles with larger tires.

Ultimate Dana 60™ axles are designed to give you an advantage across even the most brutal terrain:

  • Spicer® 35 spline SAE-4340 nickel chromoly steel axle shafts
  • Axle tubes: 3.5" outside diameter/.370" (front) or .390" (rear) wall thickness
  • Spicer® ring and pinion gearing: 10" (256 mm) on front axles and 9.75" (248 mm) on rear
  • Genuine “Made in the USA” gearing
  • Heavy-duty 8" x 6.5" wheel bolt pattern
  • Nodular iron diff cover
  • Selectable electronic locking differentials
  • Heavy-duty brackets
  • Spicer® 1350 strap-style/half-round end yoke
  • Upgraded heavy-duty brakes with plug-and-play ABS system

UD60 Call Outs
